Job completed for Mike F.

Completion date: December 21, 2017

Location: Charlottesville, VA

Why did the customer contact us?

Customer Contacted us about an oil furnace that quit working at his rental property. Wanted us to come take a look and get the unit working again.

Solutions provided:

Found that there was no oil filter installed on the supply line from the tank to the burner. This was allow debris and sludge to reach the nozzle feed tube, and the nozzle itself. Found the nozzle clogged, we were able to clean it temporarily, until we could return with a new nozzle.

While inspecting the system also found a crack in the target wall inside the fire box. Highly recommended the chamber be replaced. Also found the transformer for the electrodes going bad.

We cleaned the entire oil furnace and flue pipe, replaced the chamber, electrode transformer, cad cell.

Installed a new filter with shut off valves on the supply line.

After all the work was done used a Bacharach Fyrite INSIGHT Plus Combustion Analyzer to properly tune the system.

Team members on this project:

Alex Laukaitis

Photos & Videos:

Top View of New Chamber
Large View Icon
Top View of New Chamber
Top View of Old Chamber
Large View Icon
Top View of Old Chamber
New Target chamber installed
Large View Icon
New Target chamber installed
Clean Flue pipe and Chimney.
Large View Icon
Clean Flue pipe and Chimney.
Dirty Flue pipe and bottom of Chimney.
Large View Icon
Dirty Flue pipe and bottom of Chimney.
Crack in target wall is circled
Large View Icon
Crack in target wall is circled

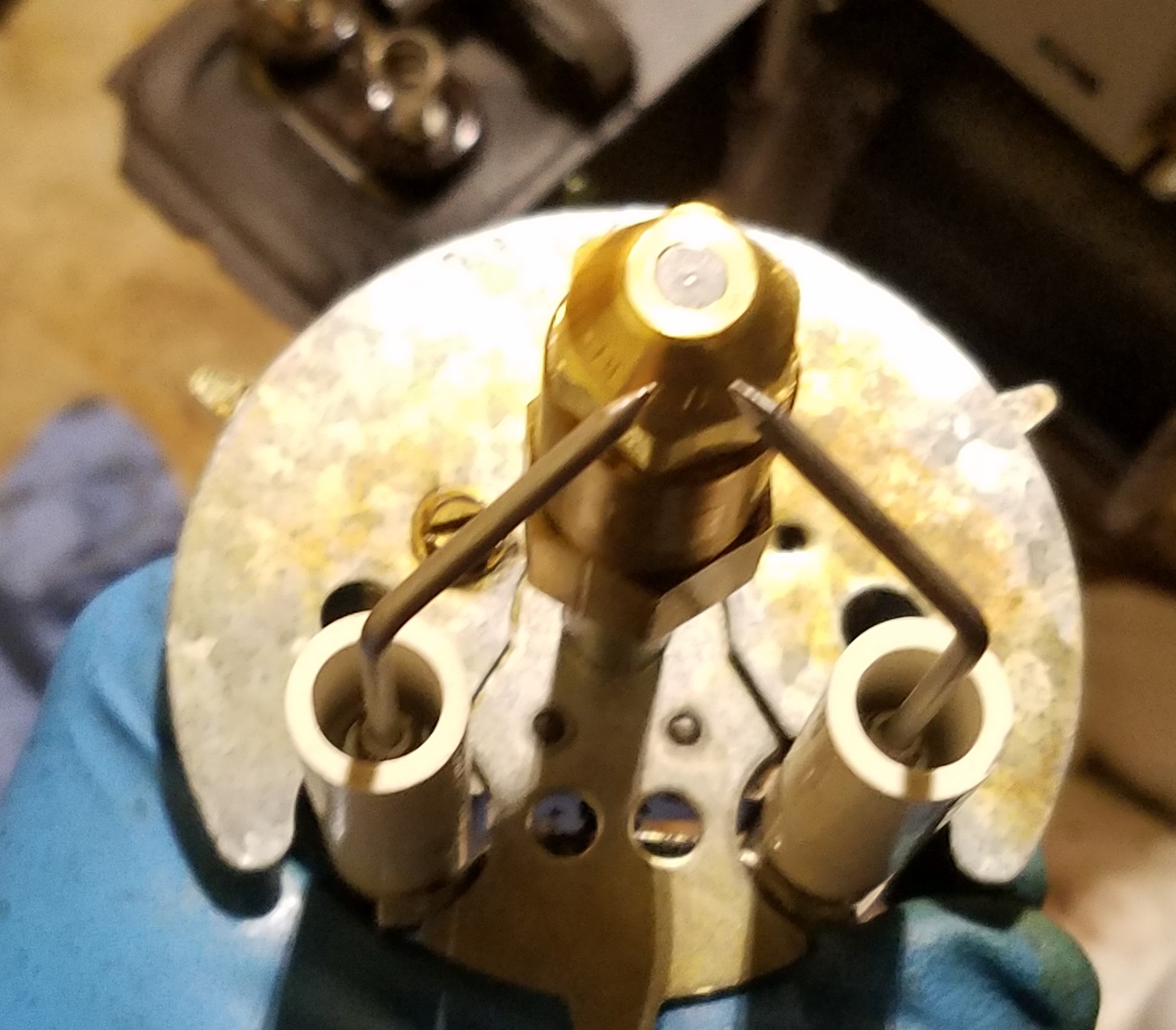

Notice how electrode tips have points.
Large View Icon
Notice how electrode tips have points.
Old Nozzle and Electrodes, notice how electrode points are flat, these should come to a sharp point.
Large View Icon
Old Nozzle and Electrodes, notice how electrode points are flat, these should come to a sharp point.
Cleaned, with New nozzle and electrodes installed
Large View Icon
Cleaned, with New nozzle and electrodes installed
Old Electrodes and nozzle
Large View Icon
Old Electrodes and nozzle
Old target wall/chamber
Large View Icon
Old target wall/chamber
